Integration into Liver Studies

Cornelius von Morze, PhD, Assistant Professor, Mallinckrodt Institute of Radiology, Washington University

Michael A. Ohliger, MD PhD, Associate Professor, Department of Radiology and Biomedical Imaging, University of California, San Francisco

Abstract

Hyperpolarized (HP) ¹³C MRI can provide non-invasive metabolic imaging readouts along several key hepatic metabolic pathways, including pyruvate-lactate exchange, glutaminolysis, gluconeogenesis, and the metabolism of ketones and short chain fatty acids. Integration of HP ¹³C MRI methods into liver imaging studies introduces various specialized technical challenges, due to its anatomic location within the abdomen and associated respiratory motion. These challenges can be addressed by rapid imaging strategies such as metabolite-specific spectral-spatial (SPSP) radiofrequency excitation with echo planar imaging (EPI) readout, which is also well suited for the rapid T₁ decay of HP magnetization. Hyperpolarized ¹³C MRI based on [1-¹³C]pyruvate and a variety of other probes is applicable for the study of pathophysiologic metabolic changes in primary liver cancer, mainly hepatocellular carcinoma (HCC), as well as metastatic disease. Proof of principle clinical translation has recently been demonstrated for imaging metastatic liver lesions using [1-¹³C]pyruvate. [1-¹³C]pyruvate and other probes are also applicable to the study of diffuse liver disease, especially non-alcoholic steatohepatitis (NASH).

Keywords: Liver, Hyperpolarized, 13C, MRI, HCC, NASH

Liver imaging: state of the art

The primary modalities for medical imaging of the liver are ultrasound (US), computed tomography (CT), and magnetic resonance imaging (MRI). These scans are routinely used to assess liver size and contour, to detect and evaluate focal lesions, and to evaluate vascular and biliary anatomy. Although these applications are extremely important and useful, they reflect a traditional radiological view of the liver as a static lump of tissue (1), belying its highly dynamic physiologic functions, especially the rich metabolic processes occurring below the surface. More recently, sophisticated variations on these modalities have been developed to provide added deeper insights into liver disease, especially diffuse liver disease. For example, proton density fat fraction (MRI-PDFF), a form of localized ¹H MR spectroscopy, has emerged as the gold standard approach for quantifying hepatic steatosis (2). Supplemented by mechanical shear wave excitation, US- and MRI- elastography can be used to measure liver stiffness as a marker for liver fibrosis (3). Molecular imaging has thus far made only a relatively minor impact on the clinical management of patients with primary liver disease. A notable exception is gadoxetate MRI, which can be used to probe the activity of OATP transporters in hepatocytes, and is routinely applied for evaluating primary as well as metastatic liver lesions (4). Although frequently used to detect liver metastases (5), the role of positron emission tomography (PET), the gold standard of molecular imaging, has been somewhat limited in the context of primary liver disease. This might be because the liver’s rich metabolic functions tend to accumulate labels fairly non-specifically, with normal liver typically appearing bright with many different small molecule tracers.

Hyperpolarized (HP) ¹³C MRI has emerged as a viable, clinically translatable, approach for imaging the liver, with the potential to probe important hepatic physiologic processes non-invasively including perfusion, transport, and especially metabolism, by exploiting the unparalleled specificity of ¹³C MR for metabolic pathways of interest. In particular, hyperpolarized [1-¹³C]pyruvate is rapidly metabolized into [1-¹³C]lactate and [1-¹³C]alanine in liver tissue, via lactate dehydrogenase (LDH) and alanine transaminase (ALT), respectively, providing a new set of potential biomarkers of liver disease. As reviewed in detail below, HP [1-¹³C]pyruvate and numerous other HP ¹³C probes have been applied for studies of liver pathophysiology.

Compared to PET imaging, HP ¹³C MRI has several potential advantages in liver imaging. In HP ¹³C, several probes can be imaged at once, offering simultaneous assessment of multiple metabolic pathways. In addition, PET relies on the accumulation of a radiotracer at a target site. Uptake of ¹⁸F-fluorodeoxyglucose (FDG) in hepatocellular carcinoma (HCC), for example, is influenced by the expression of glucose-6-phosphatase (6), which permits the release of trapped FDG. Because HP ¹³C is sensitive to metabolic changes it requires no such trapping.

Technical challenges of liver HP ¹³C MRI

Besides the demanding logistical requirements universally associated with the short signal lifetime of HP magnetization, HP liver imaging presents a unique set of additional technical challenges. As depicted in Figure 1, the dual vascular input to the liver from the portal vein (major source of perfusion) and hepatic artery could complicate the interpretation of signal dynamics. In addition, because HP material in the portal vein has already passed through the GI tract, it could potentially have a different profile than that originating from the hepatic artery. Finally, it is well-known that dramatic alterations in the relative blood flow in the hepatic artery and portal vein can occur with meals, and these changes are further modulated by the presence of superimposed liver diseases such as portal hypertension (7).

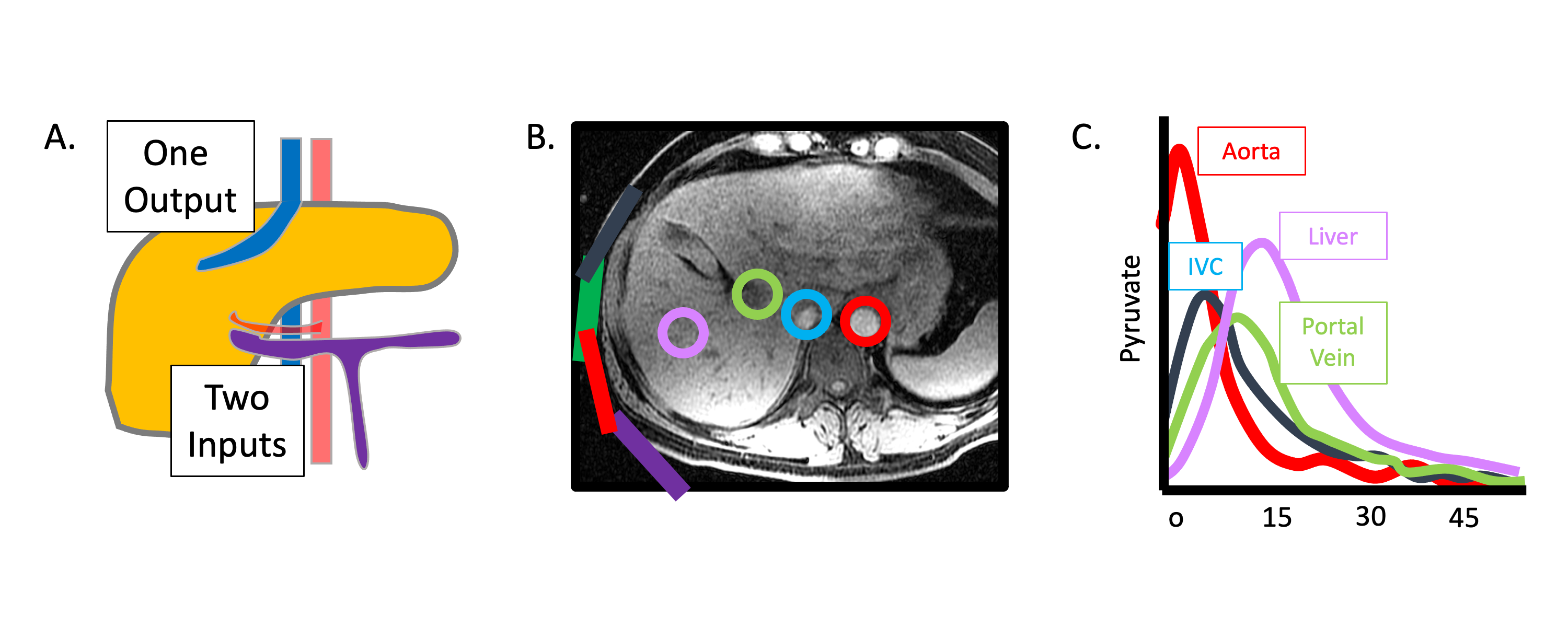

Figure 1: Dual blood supply of the liver visualized using HP 13C MRI. (A) Schematic illustration of the blood supply of the liver, showing the portal vein (purple) draining the gastrointestinal tract and the hepatic artery (red), with a single output hepatic vein (blue). (B) T1-weighted image of the liver with ROIs drawn around the aorta (red), inferior vena cava (blue), portal vein (green), and liver parenchyma (purple). (C) HP [1-13C]pyruvate signal measured over time from the vessels shown in (B) demonstrates clear distinct inputs from the arterial and portal venous supply

Another challenge in imaging the liver with HP ¹³C is breathing motion. Most dynamic HP acquisitions (40-60 s) are too long for a single breath-hold. The large respiratory motion of the liver demands especially fast image acquisition, ideally triggered by respiratory signals. Echo planar imaging (EPI) with metabolite-specific spectral-spatial (SPSP) radiofrequency excitation is an appealing fast imaging strategy for HP ¹³C MRI of the liver (8-10), but can be vulnerable to B₀ inhomogeneity (Figure 2), with typical SPSP pass- and stop-band widths as small as +/- 0.5 ppm. Errors in the SPSP pulse center frequency can lead to application of incorrect flip angles and/or image reconstruction artifacts, potentially confounding data interpretation. Some degree of frequency offset is likely inevitable due to higher B₀ inhomogeneity in the abdomen as compared with more stationary and uniform tissues like brain.

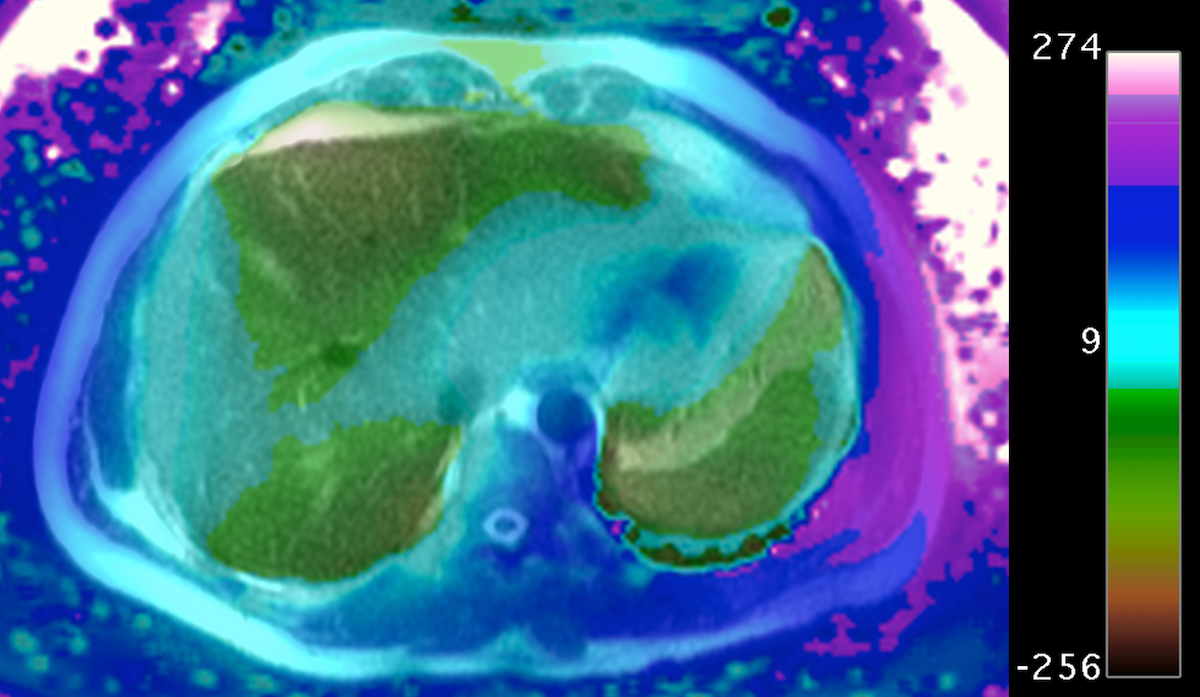

Figure 2 Field map (Hz) in the abdomen acquired using the IDEAL-IQ multiecho gradient echo method at 3T shows large B0 frequency variation in this slice, which can be a challenge for frequency-selective acquisition techniques. Colorbar represents frequency offset in hertz at 3T.

Intrinsic tissue properties of the liver may also present challenges. The presence of bowel gas within the gastrointestinal tract can create large magnetic field variations within the abdomen caused by magnetic susceptibility. In addition, ¹³C T₁ and T₂ relaxation times may also be shorter in liver than other issues, due to paramagnetic relaxation by liver iron and/or other factors (11).

In terms of acquisition hardware phased array reception can provide increased SNR (at least peripherally) and the coverage that is needed to cover the abdomen (12), with the added potential for parallel imaging (13-15). Such approaches have helped revolutionize body ¹H MRI, but new methods are needed for parallel ¹³C reconstructions based on limited availability of calibration data (16,17). The ideal size and number of coils for ¹³C imaging of the abdomen is not yet clear, but should be similar to ¹H imaging at the same Larmor frequency. At the same field strength, therefore, the optimal number of coil elements for a ¹³C -sensitive coil array is likely less than that for a proton array.

A large transmitter coil is necessary to provide high transmit RF homogeneity over the abdomen, with a clamshell insert transmitter coil having been used for initial studies (18). However, such a coil occupies a significant fraction of the scanner bore, placing a significant constraint on patient size. In this regard, abdominal imaging would stand to benefit tremendously from the development of a dual-tuned ¹³C /¹H body coil to handle ¹³C excitation (19). Likewise, a significant appeal of ¹H-based detection of HP ¹³C probes following polarization transfer (20,21) is the potential to liberate space inside the scanner bore occupied by ¹³C receiver coils.

Liver metabolic pathways accessible via HP imaging

Numerous studies have investigated liver metabolism using HP [1-¹³C]pyruvate, following initial work showing the potential to probe oxidative and anaplerotic pathways of pyruvate metabolism in perfused liver (22), as well as exchange into [1-¹³C]lactate and [1-¹³C]alanine, which constitute the major hepatic signals observed in vivo. Not surprisingly, exchange into these dynamic hepatic metabolite pools has been shown to be influenced by nutritional status (fasted vs normal fed) (23), as well as by insulin deficiency and insulin resistance (24,25). Hepatic HP [1-¹³C]lactate metabolite signals are also sensitive to drug treatments such as metformin (26), which arrests hepatic mitochondrial metabolism at the level of complex I, altering the cytosolic NAD(H) redox state. Alternatively HP [2-¹³C]pyruvate can be used to probe TCA intermediates, although normal hepatic flux through pyruvate dehydrogenase (PDH) is low unless stimulated acutely such as by dichloroacetate treatment (27).

Several hepatic metabolic pathways accessible via HP ¹³C MRI are illustrated in Figure 3. Unlike many tumor tissues and brain, which are common targets for HP ¹³C imaging and rely largely on glucose to meet their energetic demands, normal liver relies predominantly on fatty acids for energy to support its myriad biosynthetic functions, suggesting that metabolic probes other than pyruvate might be useful. As illustrated in Figure 3, other potentially relevant probes of liver metabolism include the short acid fatty acid [1-¹³C]butyrate (28) and ketone body [1,3-¹³C₂]acetoacetate (29), both of which could be used to assess hepatic mitochondrial metabolism. Fatty acids with chain lengths longer than four carbon units generally have insufficient T1’s and/or cellular uptake for HP ¹³C metabolic imaging studies. HP [2-¹³C]dihydroxyacetone (30) and [2-¹³C]fructose (31) are rapidly taken up and phosphorylated by liver, offering potential assessment of liver energy charge that can complement the redox-based assessment offered by pyruvate. These substrates introduce bidirectional ¹³C labeling upstream of pyruvate along the pathways of glycolysis / gluconeogenesis. Direct detection of glucose production is possible using 1H-decoupled HP [2-¹³C]dihydroxyacetone (30,32).

Conversion of [1-¹³C]dehydroascorbate to [1-¹³C]vitamin C (33) can be used to directly probe hepatic oxidative stress, providing a complementary view of redox as mediated by NADP(H) as compared to NAD(H). [1-¹³C]alanine has been used to directly probe the hepatic intracellular lactate / pyruvate ratio (34,35), as the alanine rapidly exchanges with lactate and pyruvate once it enters the cell, providing a means to discriminate intracellular signals from larger extracellular signals. The lower cellular permeability of alanine as compared to pyruvate has been addressed by use of an ethyl ester (36). Lactate, as the dominant circulating substrate as compared to pyruvate, has also been used for HP ¹³C studies, but label exchange into pyruvate is much lower than when injecting pyruvate, because of the smaller pyruvate pool size. Flux through the pentose phosphate pathway (PPP) has been assessed in perfused livers using HP \(\delta\)-[1-¹³C]gluconolactone. Additionally, HP [¹³C]urea and other metabolically inert probes can be used to assess liver perfusion and vascular permeability (37,38).

¹⁵N probes such as L-[¹⁵N]carnitine can provide longer signal lifetimes for HP liver imaging, which remains feasible for at least three minutes after ¹⁵N injection (39). Finally, the liver-specific paramagnetic relaxation agent gadoxetate together with hyperpolarization offers an avenue toward hepatocyte-specific metabolic measurements, by quenching extraneous HP signals including those arising from adjacent vasculature or other cell types (40).

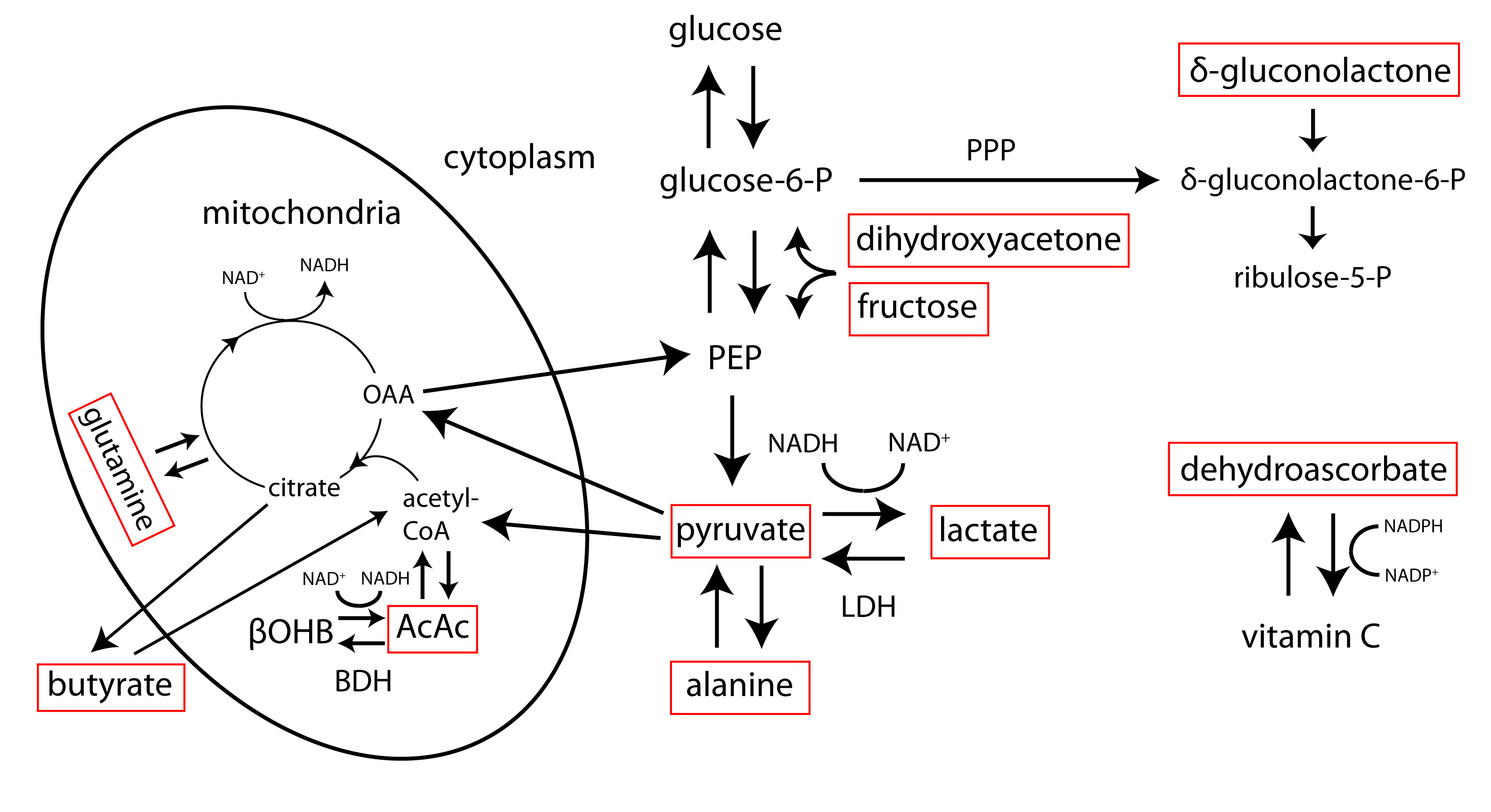

Figure 3. Simplified view of hepatic metabolic pathways accessible via hyperpolarized ¹³C MRI. Some relevant hyperpolarized ¹³C substrates are labeled in red boxes. AcAc= acetoacetate, βOHB= β-hydroxybutyrate, LDH= lactate dehydrogenase, BDH= β-hydroxybutyrate dehydrogenase, OAA= oxaloacetate, PEP= phosphoenolpyruvate, PPP= pentose phosphate pathway, NAD(H)= nicotinamide adenine dinucleotide (hydride), NADP(H)= nicotinamide adenine dinucleotide phosphate (hydride)

Target applications of liver HP ¹³C MRI

Liver cancer

Primary liver cancer, predominantly hepatocellular carcinoma (HCC), is the fourth leading cause of cancer death worldwide, accounting for 780,000 deaths per year (41). Numerous studies have demonstrated that HP ¹³C MRI can provide diagnostic information in preclinical models of liver cancer, based on results with [1-¹³C]pyruvate and other ¹³C probes. Similar to other cancers, a highly consistent finding has been increased HP ¹³C pyruvate to lactate flux in liver tumors, driven by increased aerobic glycolysis associated with malignant transformation. Two early studies clearly demonstrated high HP lactate and alanine signals in orthotopic HCC tumors implanted into rats, correlated with LDH and ALT expression levels (11,42). Another study, as illustrated in Figure 4, also demonstrated increased HP lactate and alanine signals in a sophisticated, switchable transgenic model of liver cancer, which receded with tumor regression (43). The HP signals again correlated well with genetic signatures including the concentration of LDH and ALT as measured by ex vivo activity assays. Notably, this study identified increased HP alanine production as a very early indicator preceding tumorigenesis. Another study compared HP [1-¹³C]pyruvate with FDG-PET for imaging of HCC in rats (44), finding that either approach could visualize the increased glycolytic metabolism in these tumors.

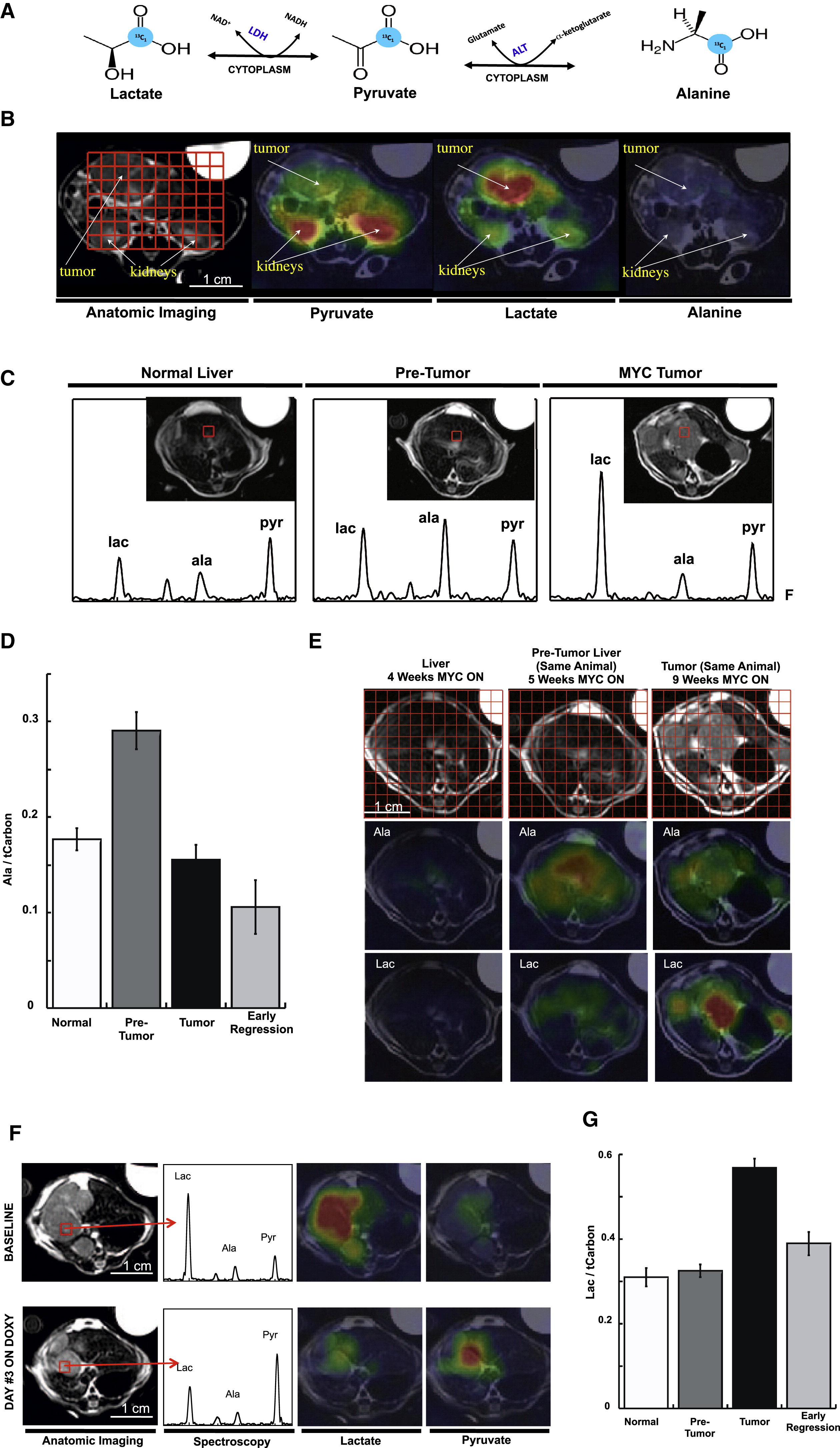

Figure 4. HP [1-¹³C]pyruvate MRI of a switchable, transgenic mouse model of liver cancer. A) Metabolic interconversion of HP [1-¹³C]pyruvate with [1-¹³C]lactate and [1-¹³C]alanine. B) Axial images of individual HP metabolites of [1-¹³C]pyruvate overlaid in color on conventional ¹H images in grayscale, in a mouse with transgenic liver cancer. C) Evolution of metabolite signals with tumor progression, with group summaries shown in D&G. E) Heterogeneity of liver signals with progression. F) Change in liver signals with disease regression. Figure reproduced from Hu S et al. (43)

HP ¹³C probes other than [1-¹³C]pyruvate have also been described in application to imaging of liver tumors. Increased glutamine consumption is a well-recognized aberration of tumor metabolism (45), potentially providing energy, carbon skeletons, and dampening of oxidative stress. Flux of HP [5-¹³C]glutamine to [5-¹³C]glutamate has been used to detect glutaminase activity in hepatoma cells (46). These results were carried forward in vivo by another group who demonstrated the ability to detect increased [5-¹³C]glutamate product signal in cancerous as compared with normal liver tissue (47). [1,3-¹³C₂]ethyl acetoacetate has been proposed as a marker for liver cancer, based on upregulated uptake and esterase activity in liver tumors (48).

Recent preclinical HP ¹³C MRI work on liver cancer has focused on the potential to assess treatment response non-invasively. One study comprehensively examined the potential of [1-¹³C]pyruvate, [¹³C]urea, and [1,4-¹³C₂]fumarate to detect response of orthotopic rat HCC to transcatheter arterial embolization (TAE), demonstrated clear responses to treatment in the HP signals (49). Urea and pyruvate signals were both locally decreased in the treated tumor region, with an increased apparent rate of lactate production. Fumarate to malate conversion correlated with histologically confirmed necrosis, based on the low permeability of the dicarboxylate molecule fumarate through intact plasma membranes (50). A recent related study showed the potential for [1-¹³C]pyruvate MRI to detect latent domains of viable HCC surviving TAE treatment (51).

In addition to primary tumors, liver is a frequent site of metastases for many cancers, such as breast, colorectal and prostate. While little preclinical HP ¹³C imaging work has been conducted in the area of liver metastases, a recently published study shows proof of principle clinical translation for detecting increased ¹³C lactate production in human liver metastases from prostate cancer, as well as the potential for monitoring response to therapy (carboplatin + docetaxel, in this case) (52). Some results from this preliminary human translational study are shown in Figure 5.

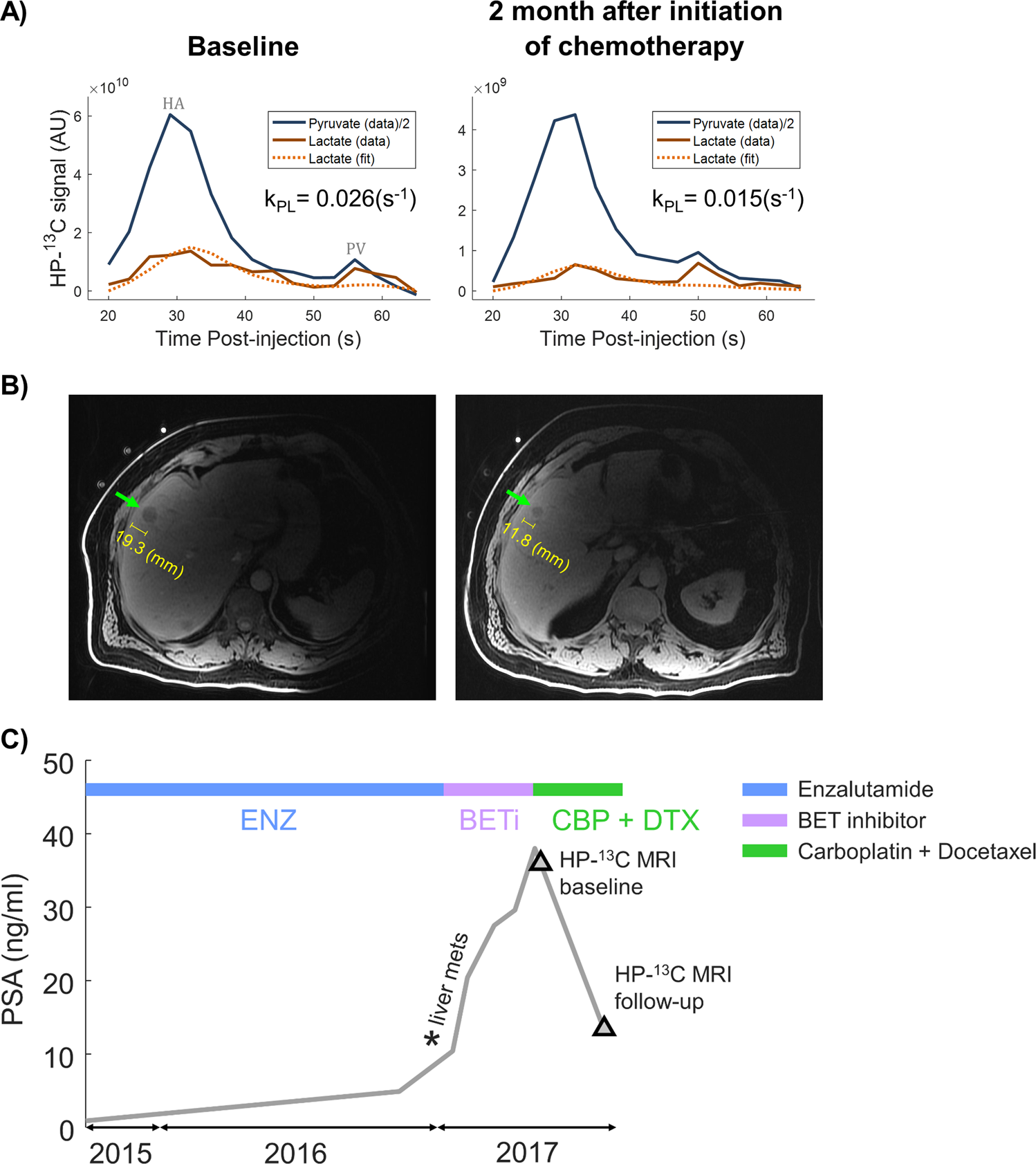

Figure 5. Proof of principle clinical translation of HP [1-¹³C]pyruvate MRI in a patient with liver metastases from prostate cancer. Dynamic tumor-localized HP ¹³C metabolite signal curves are shown in (a), before and after chemotherapy (carboplatin + docetaxel). The apparent rate of conversion of HP [1-¹³C]pyruvate to [1-¹³C]lactate declined after chemotherapy. The tumor is depicted on conventional ¹H MRI in (b). As shown in (c), prostate specific antigen (PSA) levels declined with chemotherapy, also indicating therapeutic response. Figure reproduced from Chen HY et al. (52)

Diffuse liver disease

HP ¹³C MRI also shows great potential for application to diffuse liver diseases, especially non-alcoholic steatohepatitis (NASH), a metabolically-driven hepatic inflammatory condition. While multi-echo ¹H MRI provides superb depiction of liver fat, a clinically important but difficult problem is the differentiation of NASH vs uncomplicated fatty liver. Two seminal studies showed elevated conversion of [1-¹³C]pyruvate to both lactate and alanine in association with acute liver injury triggered by injection of carbon tetrachloride (CCl4) and 1,3-dichloro-2-propanol (1,3-DCP) (Figure 6), respectively, in rats (53,54). These agents induce liver necrosis and inflammation. Furthermore, altered conversions of [1-¹³C]pyruvate have been observed in proportion to dose of hepatotoxic agent (55) and duration of high fat diet (56) in other related fatty liver models, suggesting the possibility to grade disease. Decreased hepatic conversion of [1-¹³C]dehydroascorbate to [1-¹³C]vitamin C was detected after feeding mice a diet deficient in choline and methionine, a common rodent model of NASH, as a result of increased oxidative stress (Figure 7) (57). Moreover, vitamin C levels normalized after recovery on normal diet. Hepatic conversion of [2-¹³C]dihydroxyacetone to [2-¹³C]glycerol-3-phosphate is attenuated by fructose challenge (58), suggesting applicability for monitoring hepatic energy charge, which may be altered along the progression to NASH. The fructose challenge paradigm, such as previously described for hepatic ³¹P MRS studies (59), could be relevant for normalization of human liver HP MRI studies.

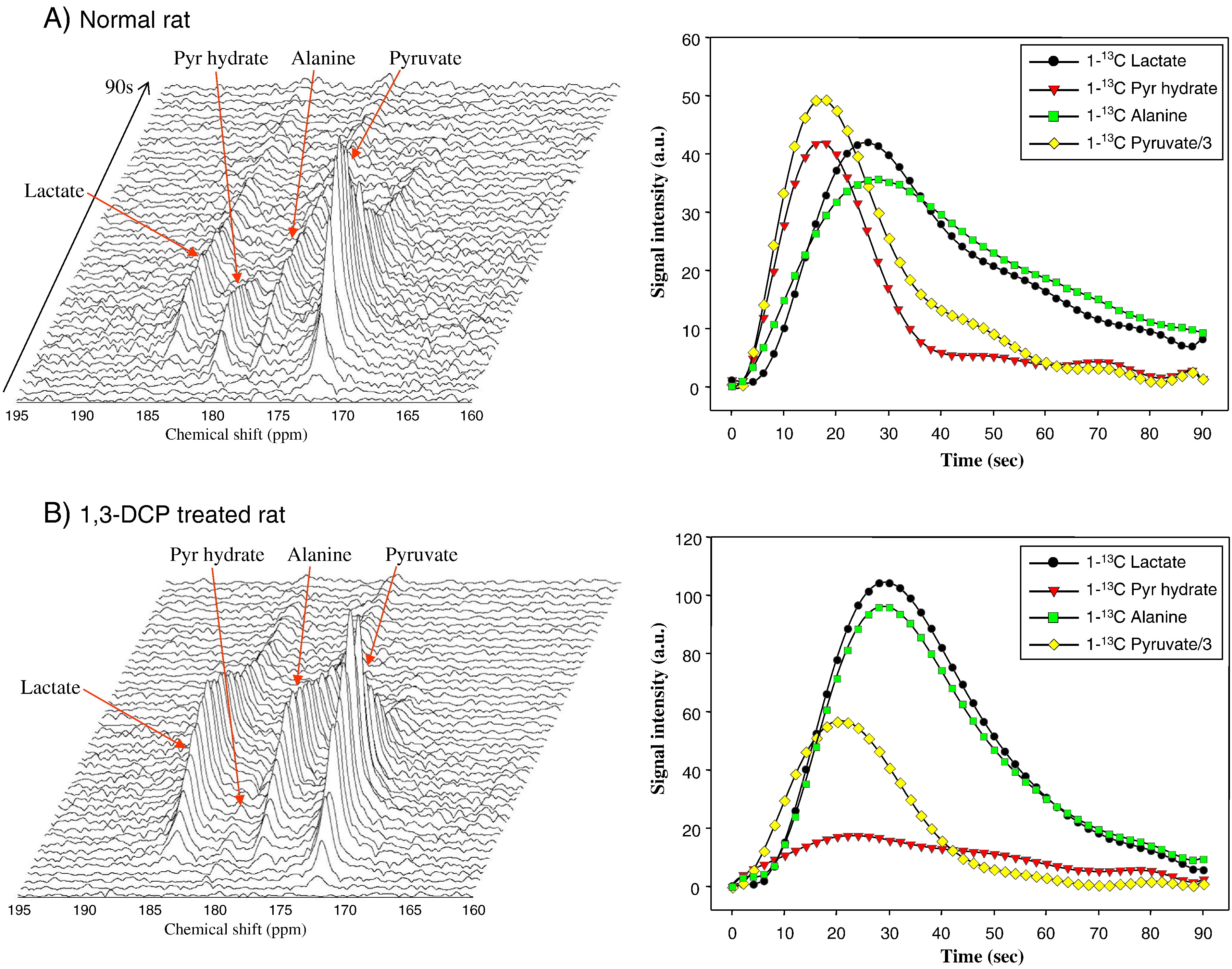

Figure 6. Example HP [1-¹³C]pyruvate spectra from normal rat liver (A) and rat liver from an animal treated with hepatotoxic agent 1,3-DCP (B), showing elevated conversion to [1-¹³C]lactate and [1-¹³C]alanine with treatment. Liver signal dynamics from each metabolite are shown in right column. Figure reproduced from Kim GW et al. (54)

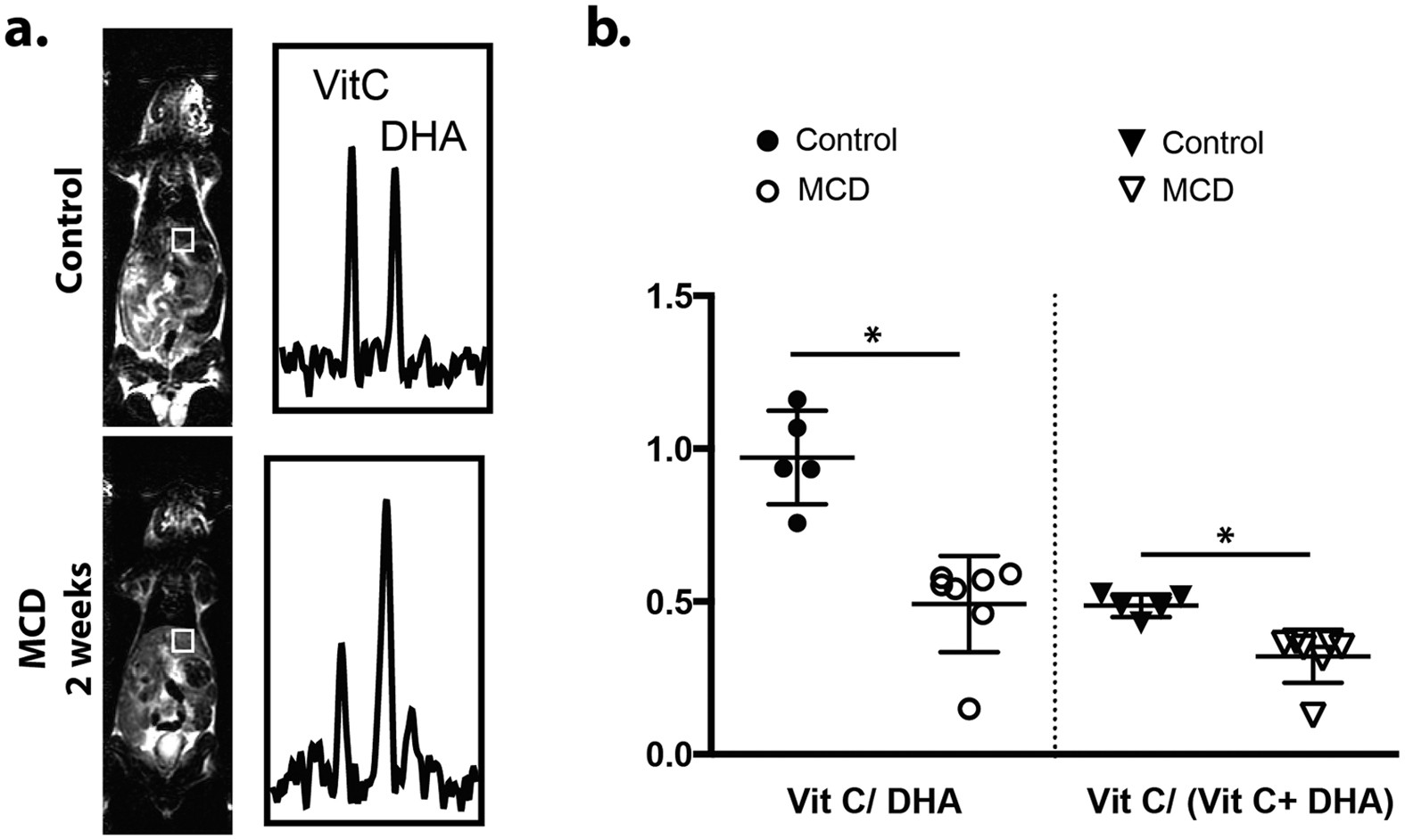

Figure 7. Example liver-localized [1-¹³C]dehydroascorbate spectra (a) from a normal mouse (top) and a mouse fed methionine and choline deficient diet (MCD) (bottom), a common rodent model of NASH. Summary group data are shown in (b). Production of [1-¹³C]vitamin C from [1-¹³C]dehydroascorbate is clearly attenuated in the MCD-fed group as a result of increased oxidative stress. Figure reproduced from Wilson DM et al. (57)

Ethanol has been shown to induce acute changes in HP [1-¹³C]pyruvate spectra in liver (60), suggesting potential applicability for studies of alcoholic fatty liver and/or alcoholic hepatitis. Altered conversions of HP [1-¹³C]pyruvate to lactate and alanine were also observed after ischemia-reperfusion injury in rats (61), an important complication of liver transplantation. Hepatic metabolic alterations were also detected using [1-¹³C]pyruvate in a model of brain death in rats (62), which also has important implications for liver transplantation.

Discussion

Because HP ¹³C can target specific metabolic pathways in the liver, it offers insights into liver function that are not currently possible using other imaging techniques. In pre-clinical animal models, HP ¹³C MRI has demonstrated great value in assessing both liver tumors as well as diffuse liver disease such as NASH. Human liver imaging requires dealing with important technical challenges, including the dual blood flow of the liver, respiratory motion, and decreased relaxation times. Imaging with HP [1-¹³C]pyruvate is already feasible, and further technical developments such as improved coil arrays and the development of integrated ¹³C body coils are expected to make imaging more robust and reliable. Importantly HP technology allows imaging with several different targeted probes, potentially at the same time. As this exciting technology moves closer to the clinic, it will likely yield new insights into liver diseases.
